Tyvek Medical Packaging: Materials, Grades, and Sterilization Compatibility

Tyvek medical packaging is the material of choice for the vast majority of sterile medical device packaging applications worldwide. Manufactured by DuPont, Tyvek is a flash-spun, nonwoven sheet structure made entirely from high-density polyethylene (HDPE) filaments. Its unique combination of microbial barrier, sterilization compatibility, mechanical strength, and sealing performance has made it the benchmark material against which all alternative porous packaging substrates are measured.

This guide covers everything you need to know about Tyvek in medical device packaging — from the three primary medical grades and their physical properties, to sterilization compatibility, sealing methods, regulatory requirements, and how Tyvek compares to medical-grade paper alternatives.

What Is Tyvek Medical Packaging?

Tyvek for medical packaging is a specific subset of DuPont's broader Tyvek product line, produced under controlled conditions to meet the stringent cleanliness, consistency, and performance requirements of the healthcare industry. Unlike consumer or industrial Tyvek variants, medical-grade Tyvek grades are manufactured with tight lot-to-lot consistency controls and come with material certifications (Certificates of Conformance and Certificates of Analysis) that support ISO 11607-1 documentation requirements.

In medical device packaging, Tyvek typically functions as the porous (breathable) component of a sterile barrier system (SBS) — the lid material of a tray, the top web of a peel pouch, or the breathable side of a flexible formed pouch. Sterilant gases or radiation pass through the Tyvek during the sterilization cycle; after sterilization, the material's tortuous fiber path prevents microorganisms from re-entering the package.

The material is characterized by its distinctive papery appearance and feel, its white opacity, and the subtle texturing of its surface. It can be printed, die-cut, perforated, and converted using standard packaging equipment, making it compatible with a wide range of manufacturing configurations.

Tyvek Grades for Medical Packaging

DuPont offers three primary Tyvek grades for medical device packaging applications. Each grade is optimized for a different balance of strength, weight, and processability. Understanding the differences between grades is essential for selecting the right material for a given application and device type.

Tyvek 1073B — High-Strength General Purpose

Tyvek 1073B is the most widely used grade in medical packaging. It offers the highest tensile and tear strength of all three medical grades, making it the preferred choice for devices with sharp edges, heavy weight, or complex geometries that could stress or puncture the SBS during handling, transportation, or storage. Tyvek 1073B is also the most robust performer in high-stress distribution environments and is often specified for implantable devices and Class III medical devices where packaging integrity failure carries the highest patient risk.

Tyvek 1059B — Medium Strength, Lighter Weight

Tyvek 1059B provides reliable microbial barrier performance at a lighter basis weight than 1073B. It is well suited for smaller, lower-mass devices with smooth surfaces that are unlikely to create puncture stress. The lighter weight can offer cost advantages in high-volume applications where the additional strength of 1073B is not required. Tyvek 1059B is commonly specified for single-use surgical instruments, catheters, and similar devices.

Tyvek 2FS — Lightweight, Form-Fill-Seal Optimized

Tyvek 2FS is designed for high-speed form-fill-seal (FFS) packaging operations where the material must be supplied in roll form and processed on automated FFS equipment. Despite its lower basis weight, Tyvek 2FS maintains excellent puncture resistance relative to medical-grade papers of comparable weight. It is commonly used in cost-sensitive, high-volume applications and is the preferred grade for FFS packaging lines processing large quantities of smaller medical devices.

Property	Tyvek 1073B	Tyvek 1059B	Tyvek 2FS
Basis weight	75.6 g/m²	60.7 g/m²	57.2 g/m²
Tensile strength (MD)	Highest	Medium	Medium
Puncture resistance	Excellent	Good	Good
Microbial barrier	Excellent	Excellent	Excellent
Primary application	Heavy/sharp devices, implantables	Light-medium devices	High-volume FFS lines
FFS suitability	Limited	Moderate	Optimized

Sterilization Method Compatibility

One of the key advantages of Tyvek for medical packaging is its broad sterilization compatibility. All three medical grades are validated for use with the following sterilization modalities:

Ethylene Oxide (EtO) Sterilization

Tyvek is one of the few packaging materials that performs optimally in EtO sterilization cycles. The porous structure allows efficient EtO gas penetration and evacuation, enabling complete sterilant contact with the device while maintaining the structural integrity of the sterile barrier. Tyvek does not absorb or retain EtO residues in quantities that would cause biocompatibility concerns when processed according to validated EtO cycles.

Gamma Irradiation

All Tyvek medical grades demonstrate stable physical properties following gamma irradiation to doses up to 50 kGy. There is no significant degradation of tensile strength, microbial barrier, or seal performance at standard medical device sterilization doses. Tyvek is widely used for gamma-irradiated implantables, single-use instruments, and diagnostics.

Electron Beam (E-beam) Sterilization

Tyvek performs well under electron beam sterilization, which delivers a high radiation dose in a very short timeframe. The rapid dose delivery of e-beam does not cause thermal damage to Tyvek's HDPE structure. Material property data across multiple irradiation cycles supports the use of Tyvek in e-beam sterilization programs.

Hydrogen Peroxide Gas Plasma (HPGP)

Tyvek is compatible with hydrogen peroxide gas plasma sterilization processes, including Sterrad systems. However, plasma sterilization is sensitive to the adsorption of hydrogen peroxide by packaging materials, and cycle parameters must be validated specifically for Tyvek-containing configurations. The material does not absorb hydrogen peroxide to a degree that would compromise sterilization efficacy in properly validated cycles.

Microbial Barrier Performance

The microbial barrier function of Tyvek — its ability to prevent microorganisms from penetrating the packaging material and contaminating the sterile device — is its most critical performance attribute in medical packaging. The barrier is achieved through the tortuous path created by the randomly layered, flash-spun HDPE fiber network. Microorganisms cannot navigate this path without becoming entrapped, even under adverse storage and handling conditions.

Published testing data from DuPont and independent laboratories consistently demonstrate that all three Tyvek medical grades provide equivalent or superior microbial barrier performance compared to medical-grade papers across the following test parameters: bacterial aerosol challenge testing; mold and spore penetration; and bacterial filtration efficiency (BFE). These results hold after accelerated aging to equivalent shelf lives of up to 5 years, which is relevant for long shelf life medical device programs. For guidance on shelf life validation methodology, see our guide to ASTM F1980 accelerated aging.

Sealing Tyvek: Methods and Considerations

Tyvek must be sealed to a compatible film substrate to form a complete sterile barrier system. The two primary sealing methods are heat sealing and cold (pressure-sensitive adhesive) sealing.

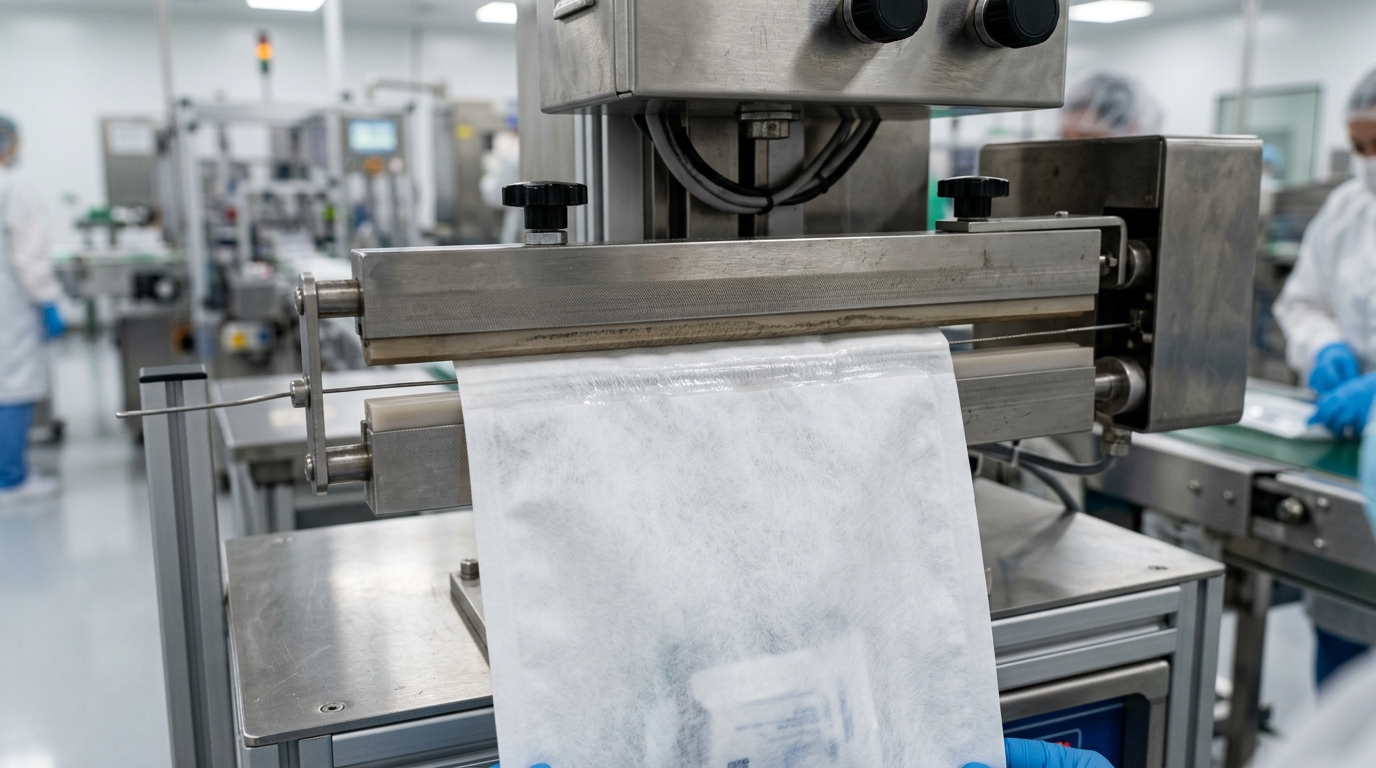

Heat Sealing

Heat sealing is the dominant sealing technology in medical packaging. Tyvek does not seal to itself — it must be sealed to a peelable film or coated Tyvek. The heat-sealable film or coating must be compatible with both Tyvek and the device's sterilization process. Common pairings include Tyvek/polyester film laminates and Tyvek/coated Tyvek configurations. Seal quality is determined by temperature, dwell time, and pressure — all of which must be defined and validated during the OQ phase of ISO 11607-2 qualification.

Cold Seal / Pressure-Sensitive Adhesive (PSA) Sealing

Cold seal systems apply pressure-sensitive adhesives to the Tyvek lid material, which bonds to the tray or pouch without the application of heat. Cold sealing eliminates the thermal stress on the device and the packaging material and is often used for temperature-sensitive devices or in applications where heat sealing is impractical. PSA seals must still meet the same seal strength and integrity acceptance criteria as heat seals under ISO 11607.

Coated vs. Uncoated Tyvek

Uncoated Tyvek cannot be directly heat sealed and requires a separate sealant layer (either on the film or on the Tyvek surface). Coated Tyvek products have a sealant coating applied to one surface during conversion, enabling direct heat sealing without an additional intermediate layer. Coated Tyvek is widely used in preformed pouch and tray lid configurations. The specific coating chemistry affects seal initiation temperature, seal strength, and compatibility with sterilization processes — all of which require validation.

Regulatory Status and ISO 11607 Requirements

As a raw material for medical device packaging, Tyvek itself does not require separate regulatory clearance — it is a packaging material, not a medical device. However, the sterile barrier system in which Tyvek is used must be validated in accordance with ISO 11607 (both Part 1 and Part 2) before the packaged device can be placed on the market as a sterile product.

DuPont maintains and provides documentation to support manufacturers' ISO 11607-1 material qualification activities, including material specifications, biocompatibility data, sterilization compatibility data, and aging study results for Tyvek in various configurations. This manufacturer-supplied data satisfies a significant portion of the material characterization evidence required by ISO 11607-1, though manufacturers are still responsible for validating their specific packaging configurations, sealing processes, and distribution conditions.

Tyvek vs. Medical-Grade Paper

Medical-grade paper (Kraft paper treated and tested for use in sterile packaging) has historically been an alternative to Tyvek, particularly in heat-sealed peel pouches for instruments processed in healthcare facilities. However, Tyvek has significant performance advantages over paper in most contexts:

Attribute	Tyvek	Medical-Grade Paper
Microbial barrier (dry)	Excellent	Good
Microbial barrier (wet/humid)	Excellent (unaffected)	Compromised
Tear / puncture resistance	Excellent	Moderate
EtO compatibility	Excellent	Good
Steam compatibility	Not compatible	Compatible
Gamma irradiation compatibility	Excellent	Good (some yellowing)
Linting (fiber shedding)	Very low	Moderate
Regulatory material data availability	Extensive (DuPont support)	Variable by supplier

The principal application where paper retains an advantage over Tyvek is in steam sterilization pouches used by healthcare facilities for reprocessing reusable instruments — a context governed by ISO 17665 (steam sterilization) rather than ISO 11607 (terminal sterilization). For terminal sterilization of medical devices supplied as finished sterile products, Tyvek is the industry standard. For comprehensive guidance on testing the seal integrity of your Tyvek-based sterile barrier system, see our article on seal integrity testing methods.

Frequently Asked Questions

Can Tyvek be recycled after use?

Tyvek is made from 100% HDPE and is technically recyclable into HDPE resin. However, contaminated medical packaging waste from healthcare facilities is typically classified as regulated medical waste and cannot be placed in standard recycling streams. Industrial recycling programs for clean, uncontaminated Tyvek (e.g., manufacturing offcuts) do exist through DuPont's own recovery programs and specialist plastic recyclers.

Why does Tyvek have a papery texture if it is made of plastic?

The distinctive texture of Tyvek results from the flash-spun manufacturing process, in which HDPE is spun into very fine continuous filaments and bonded together by heat and pressure rather than adhesives or resins. This creates a nonwoven sheet that looks and feels similar to paper but is far stronger, moisture-resistant, and chemically inert.

What is coated Tyvek and when is it needed?

Coated Tyvek has a heat-sealable polymer coating applied to one surface, enabling it to be directly sealed to film substrates or trays using heat sealing equipment. Uncoated Tyvek requires the mating film to carry a sealant layer compatible with Tyvek's HDPE fiber surface. The choice between coated and uncoated Tyvek depends on the sealing equipment, film specification, and the seal strength requirements of the specific packaging design.

Does Tyvek linting affect device sterility?

All Tyvek medical grades generate very low levels of lint compared to paper alternatives. The low-linting property is especially important for optical devices, electronic components, and devices intended for use in body cavities or the bloodstream, where particulate contamination poses a safety risk. Lint levels for all three medical-grade Tyvek variants are characterized in DuPont's material specifications and can be verified by manufacturers during incoming inspection.

How is Tyvek validated under ISO 11607?

Validation of Tyvek-based packaging under ISO 11607 follows the same IQ/OQ/PQ framework as any other sterile barrier system. DuPont provides extensive material qualification data that satisfies many ISO 11607-1 material requirements. The manufacturer must additionally validate their specific sealing process (ISO 11607-2), perform aging and distribution testing, and demonstrate that the complete sterile barrier system meets their design-specified acceptance criteria. Refer to our ISO 11607 compliance guide for a full overview of the validation process.

Is there a generic equivalent to Tyvek for medical packaging?

Several alternative porous substrates are available, including Kimberley-Clark's WinGuard and various medical-grade polypropylene nonwovens. However, none have achieved the same breadth of published performance data, regulatory track record, and global supply chain reliability as DuPont Tyvek. Any alternative substrate must be fully qualified under ISO 11607-1 using material-specific test data, and the absence of manufacturer-supplied regulatory dossiers comparable to DuPont's means the qualification burden typically falls more heavily on the device manufacturer.

Where can I find official sterilization compatibility data for Tyvek?

DuPont publishes technical data sheets, white papers, and compatibility guides for Tyvek healthcare packaging on the DuPont Healthcare Packaging website. These documents include grade-specific physical property data, sterilization compatibility summaries, and application-specific guidance for use in packaging validation programs.

For detailed material specifications, manufacturers should consult DuPont's Tyvek for Medical packaging resources and the ISO 11607-1 standard specification.
